Load-excursion drawing

Load Excursion Links display as a solid line including series of diagonal bars. You can specify the following :

• Load Excursion Link colour

• Load Excursion Link diameter : the length of the diagonal bars

The drawing has no impact on the analyses and is used for display purposes only.

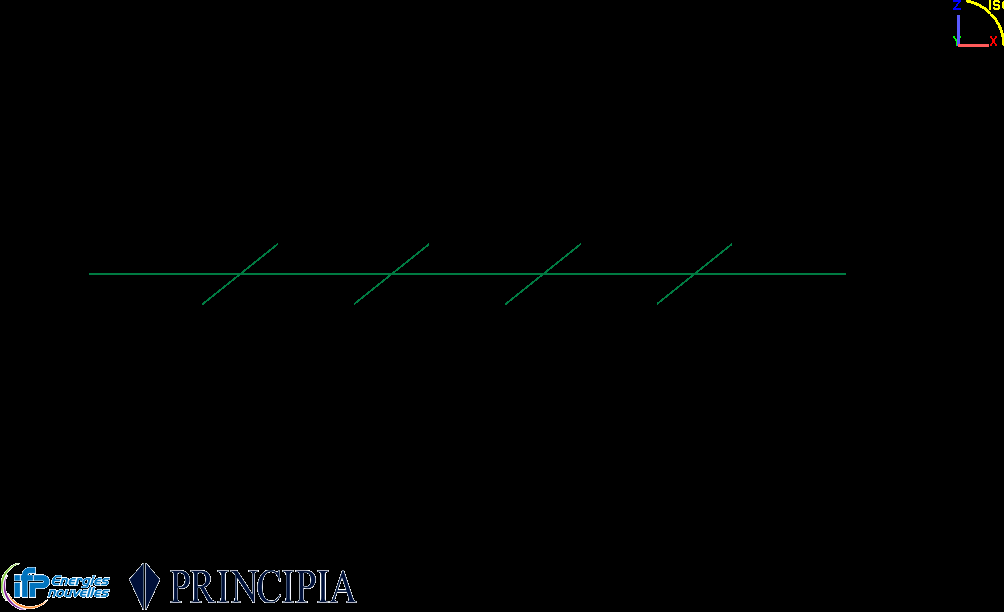

A typical Load Excursion Link display in the 3D View window is shown below :
