*NODECONT,NAME=REDWIN
Data format:
One line with 2 parameters followed by four lines with one parameter each.
INOD ITYP
DLLFileName
DLLProcName
PropFilename
Loads/disp Filename
Status :
Optional
Restriction :
For dynamic analyses only.
Purpose :
Soil models have been developped in Norway through a research program (ref. 20150014-11-R_Rev0_3D_Foundation Model Library.pdf)
Three types of models are proposed as "macro elements", each with a specific .dll; This .dll can be called by DeepLines to model the soil
Details :
| Parameter | Description |
|---|---|
| INOD | Node to impose the soil reacton |
| ITYP | Type of control : 0 force (mandatory) |
| DLLFileName | DLL file name |
| DLLProcName | DLL procedure name |
| PropFilename | Properties Input Filename |
| Loads/disp Filename | Loads or displacements input filename (text file) |

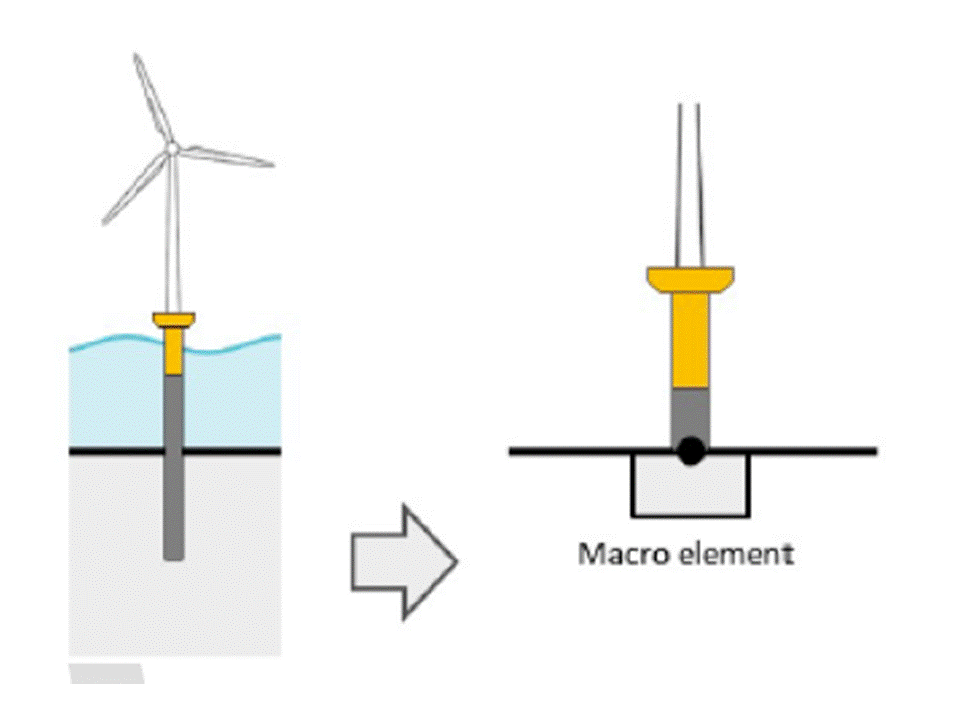

In DeepLines, the macro element is represented by a rigid body free in space and located at the intersection soil/monopile.
Two nodes are defined on that body:
-
One to connect the monopile
-
One to be linked with the soil dll. Note that this node is oriented downwards to be aligned with the .dll frame of reference

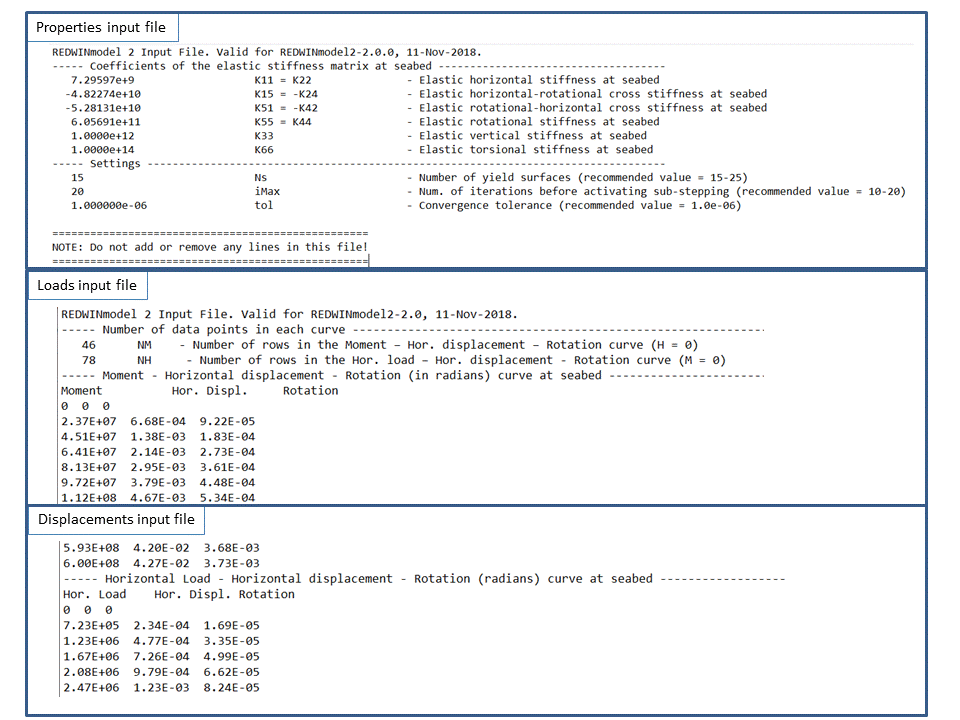

Here are examples of input files:
